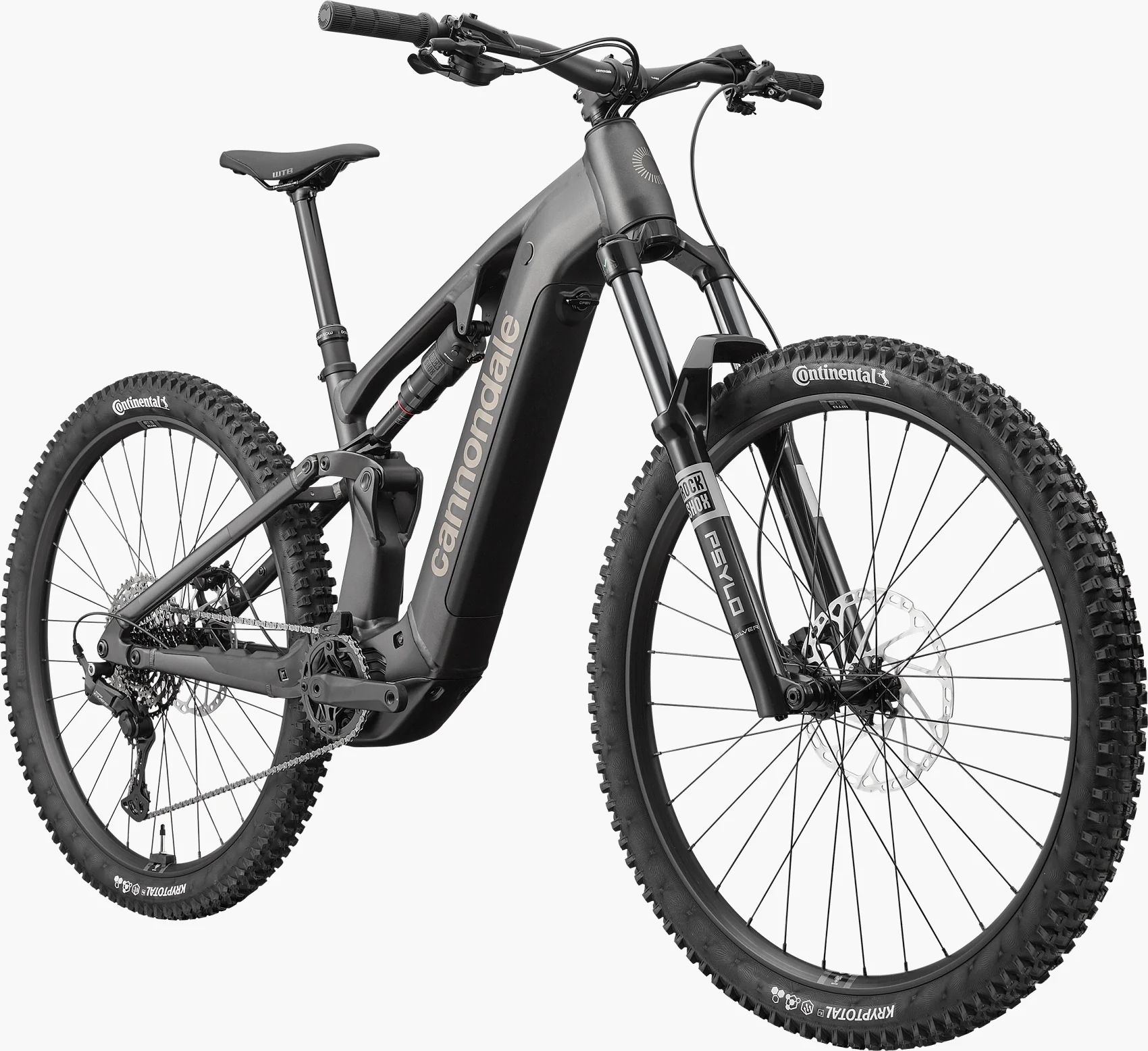

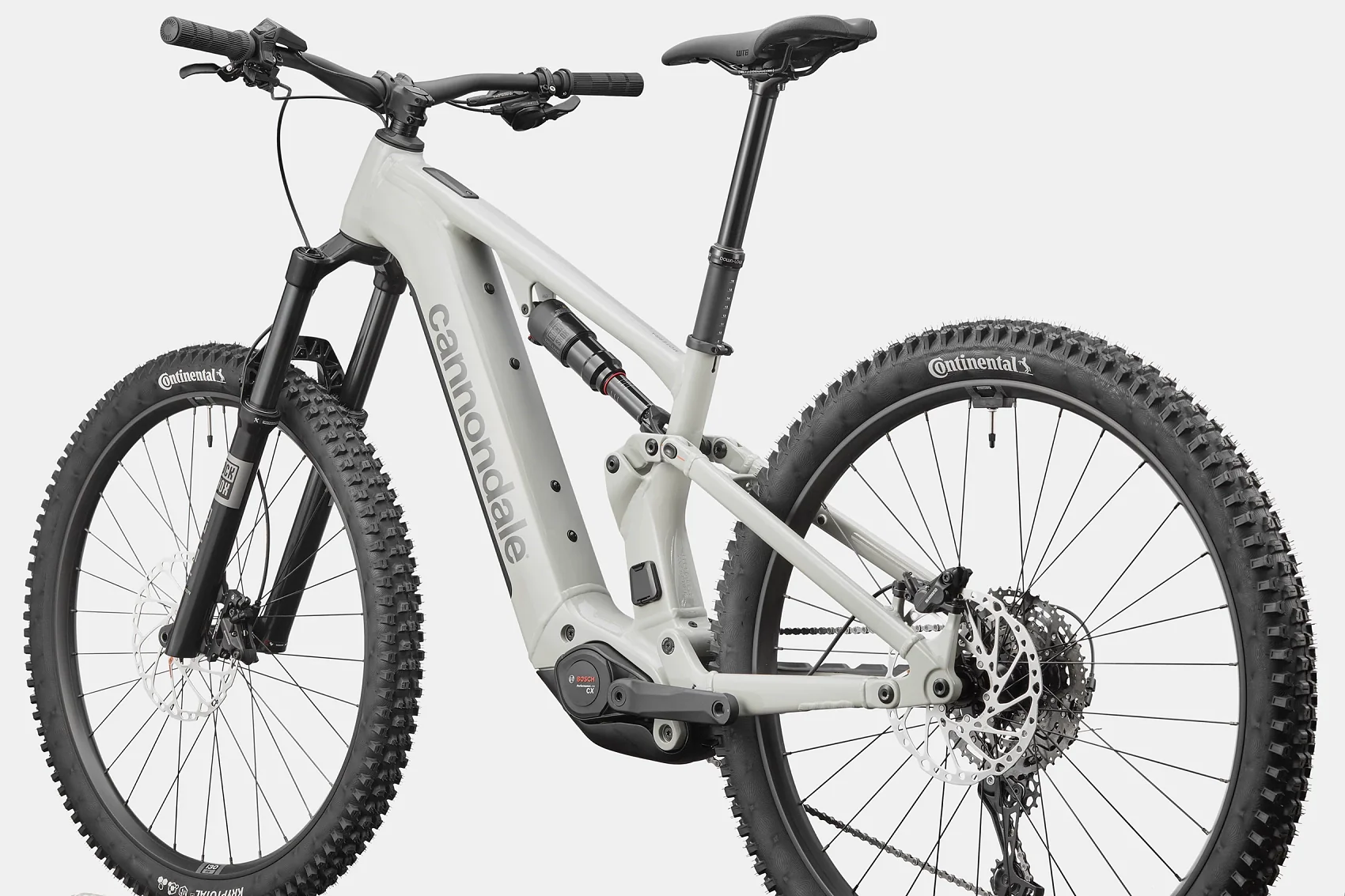

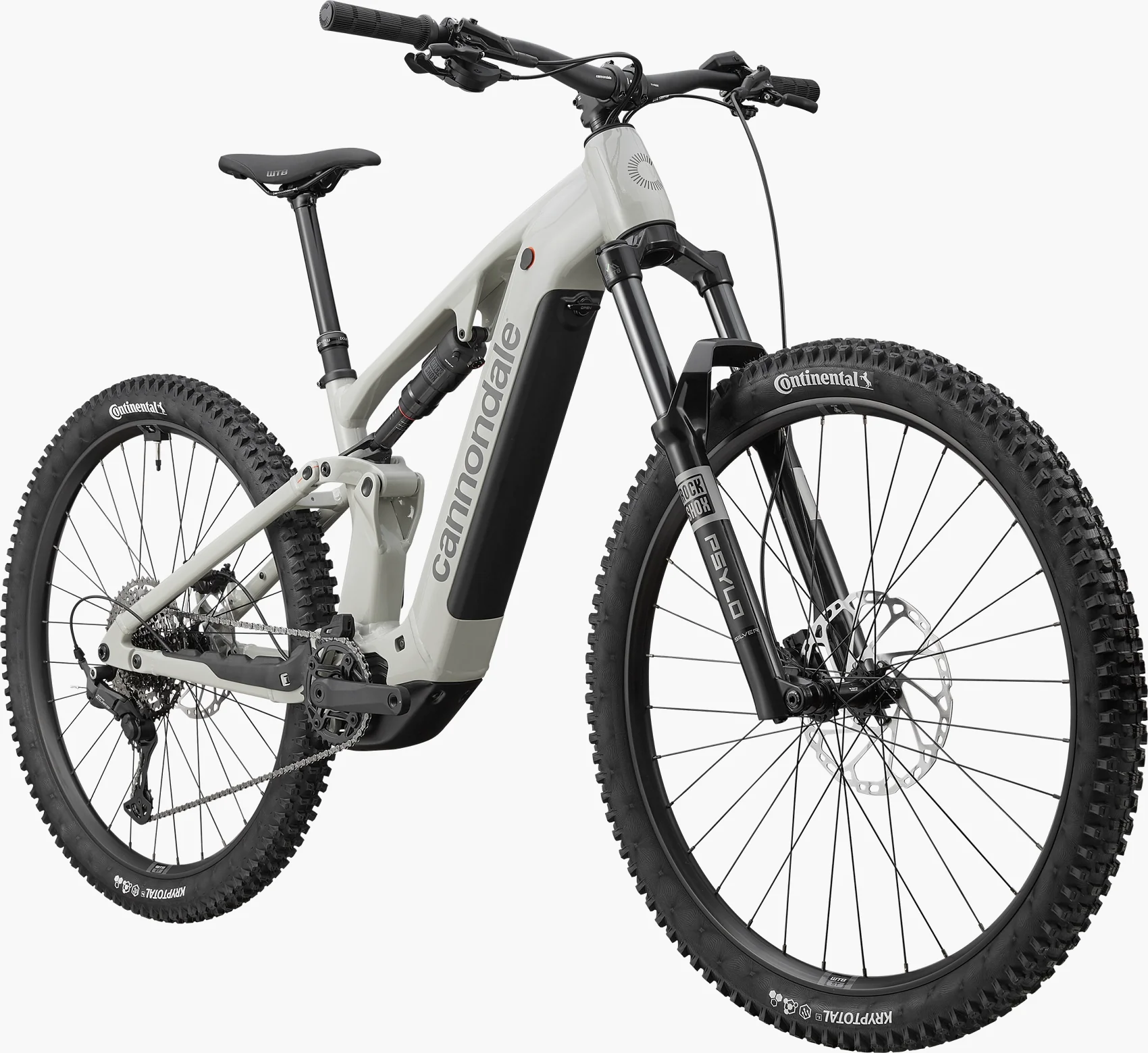

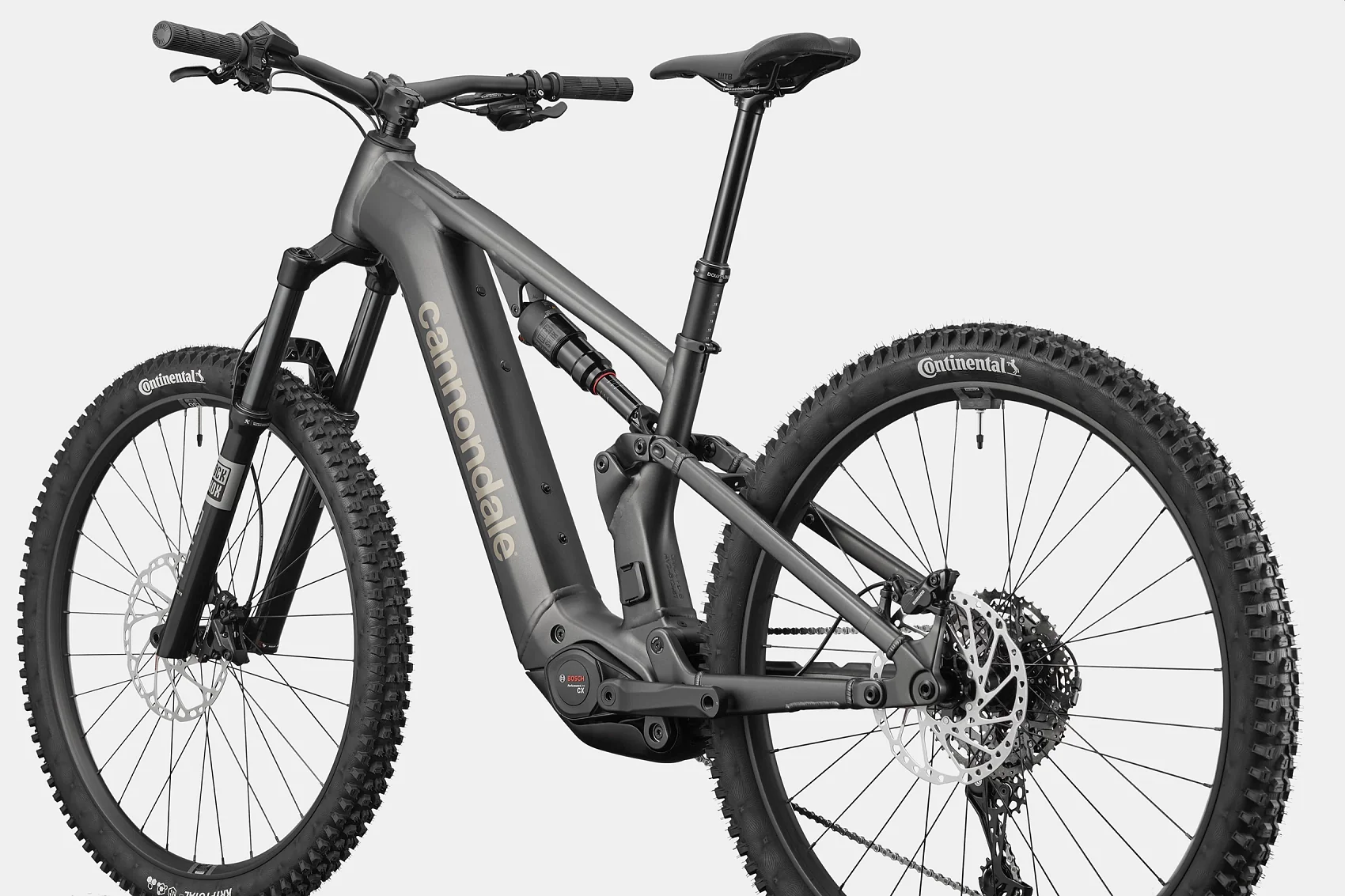

Cannondale Moterra 3
The Cannondale Moterra 3 packs massive power, endless range, and silky suspension into a rugged, trail-hungry e-mountain bike. Built to handle rugged terrain like a luxury off-roader, it gives you everything you need to push further into the backcountry, tackle long climbs with ease, and bomb down sketchy descents with total confidence.
At the core of the Moterra 3 is a premium SmartForm C1 Alloy frame that offers a cocktail of robust resilience and playful handling. It provides 150mm of plush rear suspension courtesy of a RockShox Deluxe Select shock, perfectly balanced with a 160mm RockShox Psylo Silver RC fork up front. The real magic, however, lies in Bosch's most powerful Performance Line CX motor, which cranks out up to 100Nm of torque to make short work of the steepest pitches. Fueled by a massive 800Wh battery cleanly integrated into the downtube, the Moterra 3 guarantees enough juice to taunt gravity all day long. Finished with a reliable 11-speed Shimano CUES LinkGlide drivetrain and powerful 4-piston brakes, this e-MTB is a no-nonsense trail companion ready for the wild.
Key Features:
-
Premium Alloy Frame: Cannondale's SmartForm C1 Alloy frame is light, exceptionally stiff, and guaranteed for life, delivering a perfect blend of trail toughness and snappy handling.
-

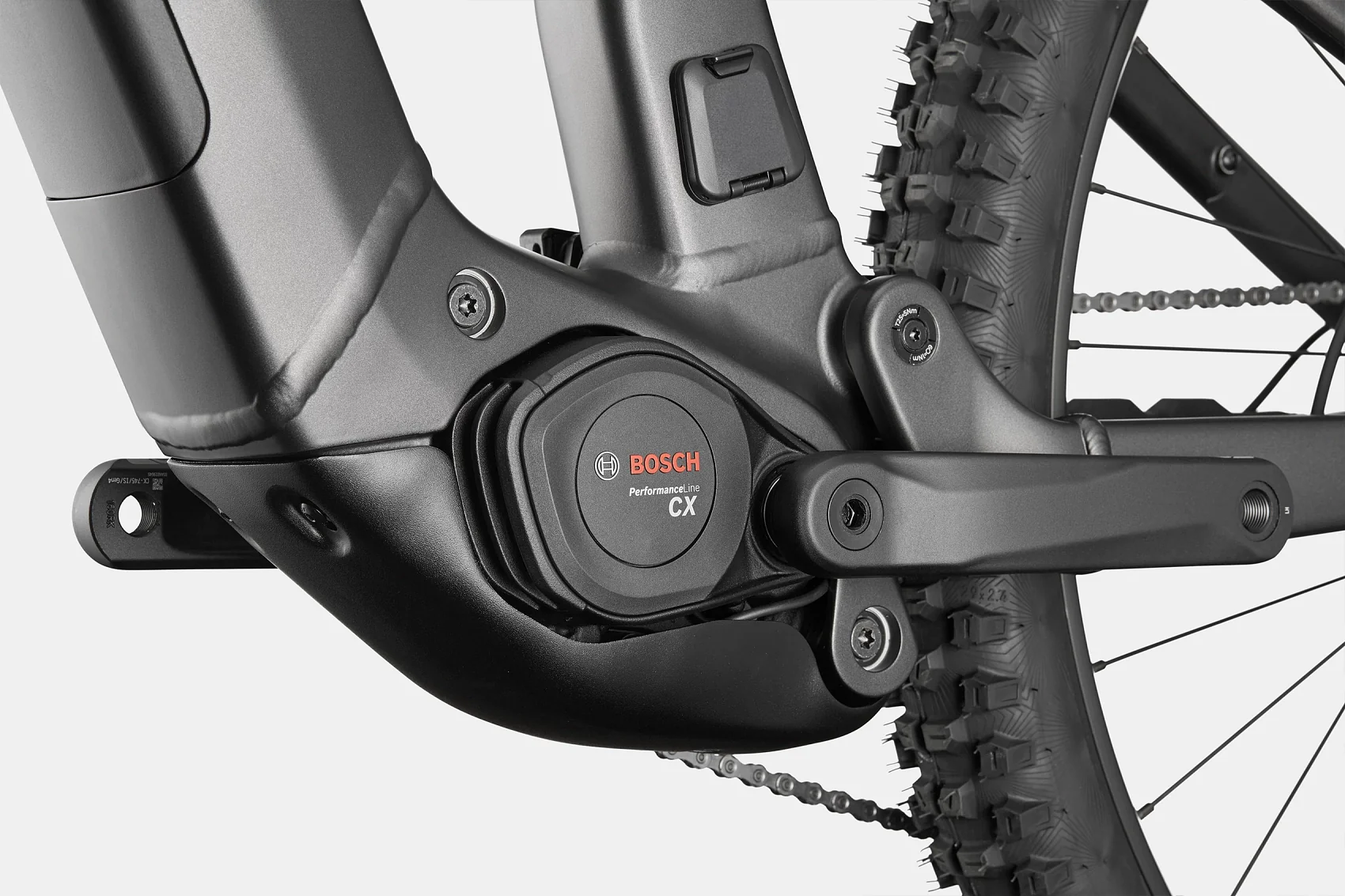

Unmatched Bosch Power: Equipped with the Bosch Performance Line CX motor and a massive 800Wh PowerTube battery. You get incredibly smooth, natural power delivery with up to 100Nm of torque for conquering brutal climbs.
-
RockShox Suspension: A 160mm RockShox Psylo Silver RC fork and a 150mm Deluxe Select air shock ensure a controlled, highly responsive ride over rocks, roots, and drops.
-

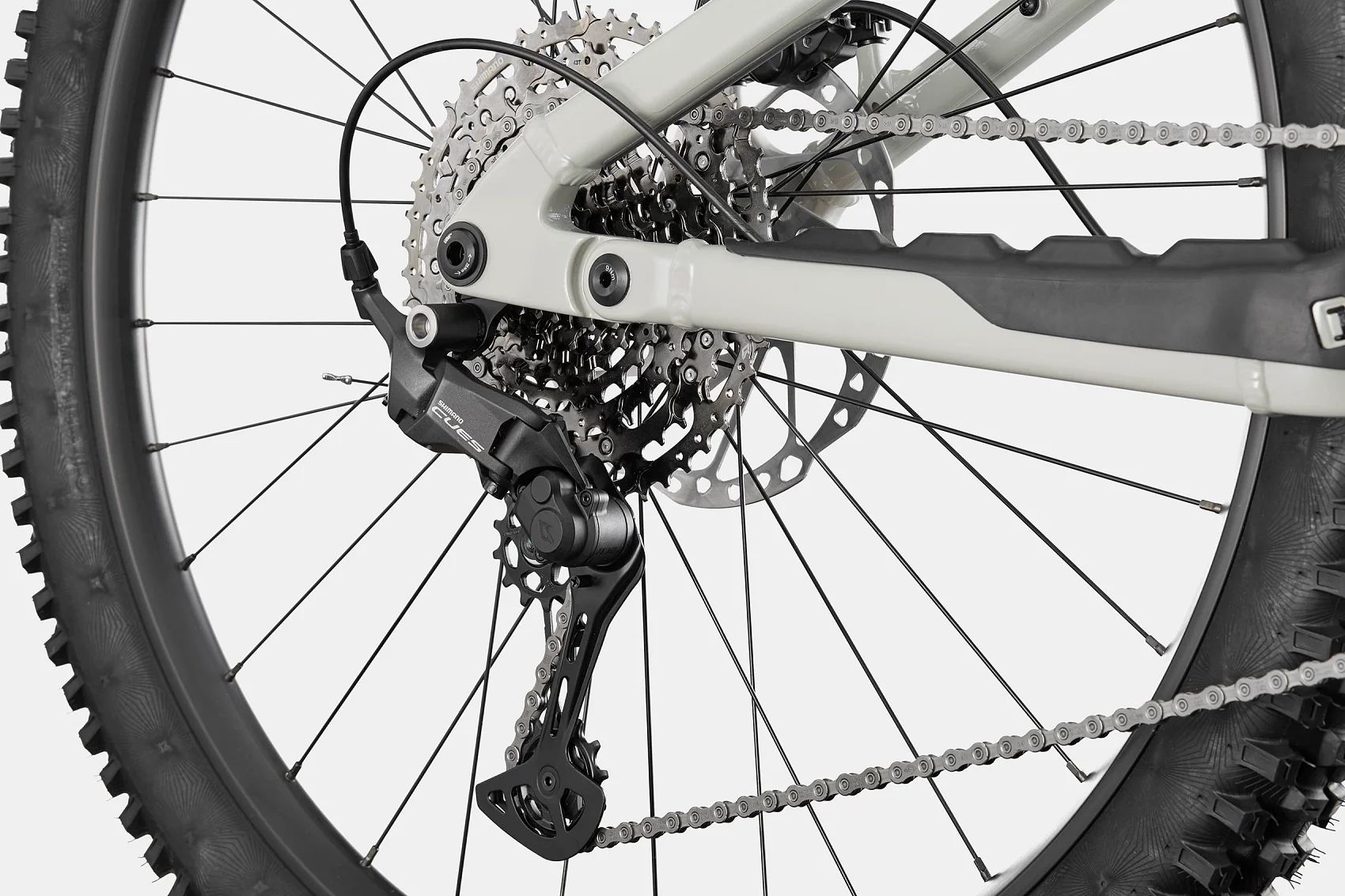

Shimano CUES LinkGlide Drivetrain: The 11-speed drivetrain provides precise shifting and is specifically engineered to withstand the high torque output of e-bike motors, offering unmatched durability.
-
Burly 4-Piston Brakes: Shimano MT520 4-piston hydraulic disc brakes paired with oversized 203mm rotors deliver strong, consistent, and fade-free stopping power for heavy, high-speed descents.
-

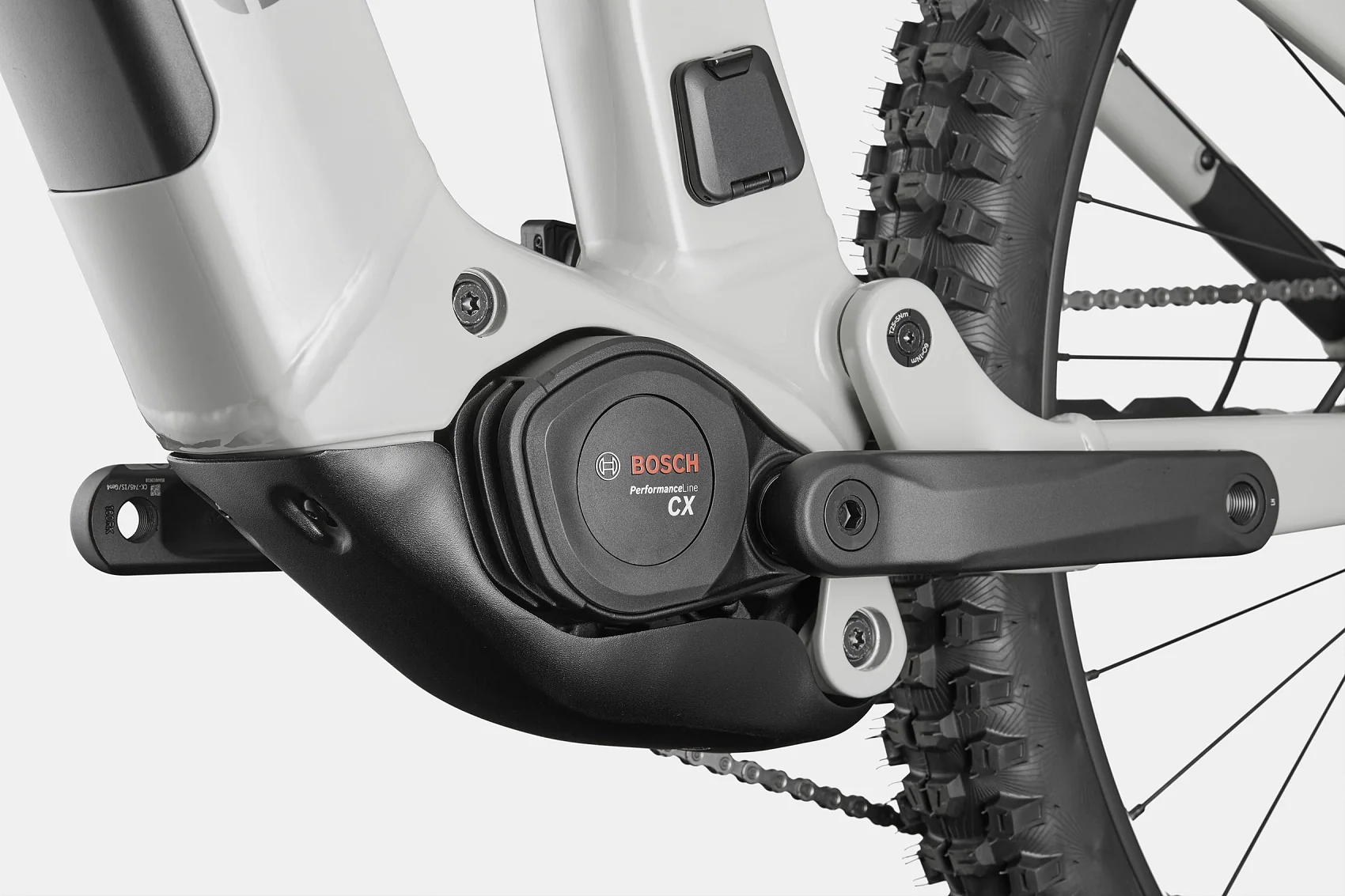

Armor Up: An integrated alloy skid plate keeps the Bosch motor and battery safe from sneaky roots and angry rocks.
Technical Specifications
| Component | Specification |
| Frame | SmartForm C1 Alloy, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, UDH, 1.5” – 1.8” tapered headtube |
| Fork | RockShox Psylo Silver RC, 160mm travel, Motion Control, SoloAir, 15x110mm thru-axle, 44mm offset |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
| Drive Unit | Bosch Performance Line CX (Up to 100Nm torque) |
| Battery | Bosch PowerTube, 800Wh |

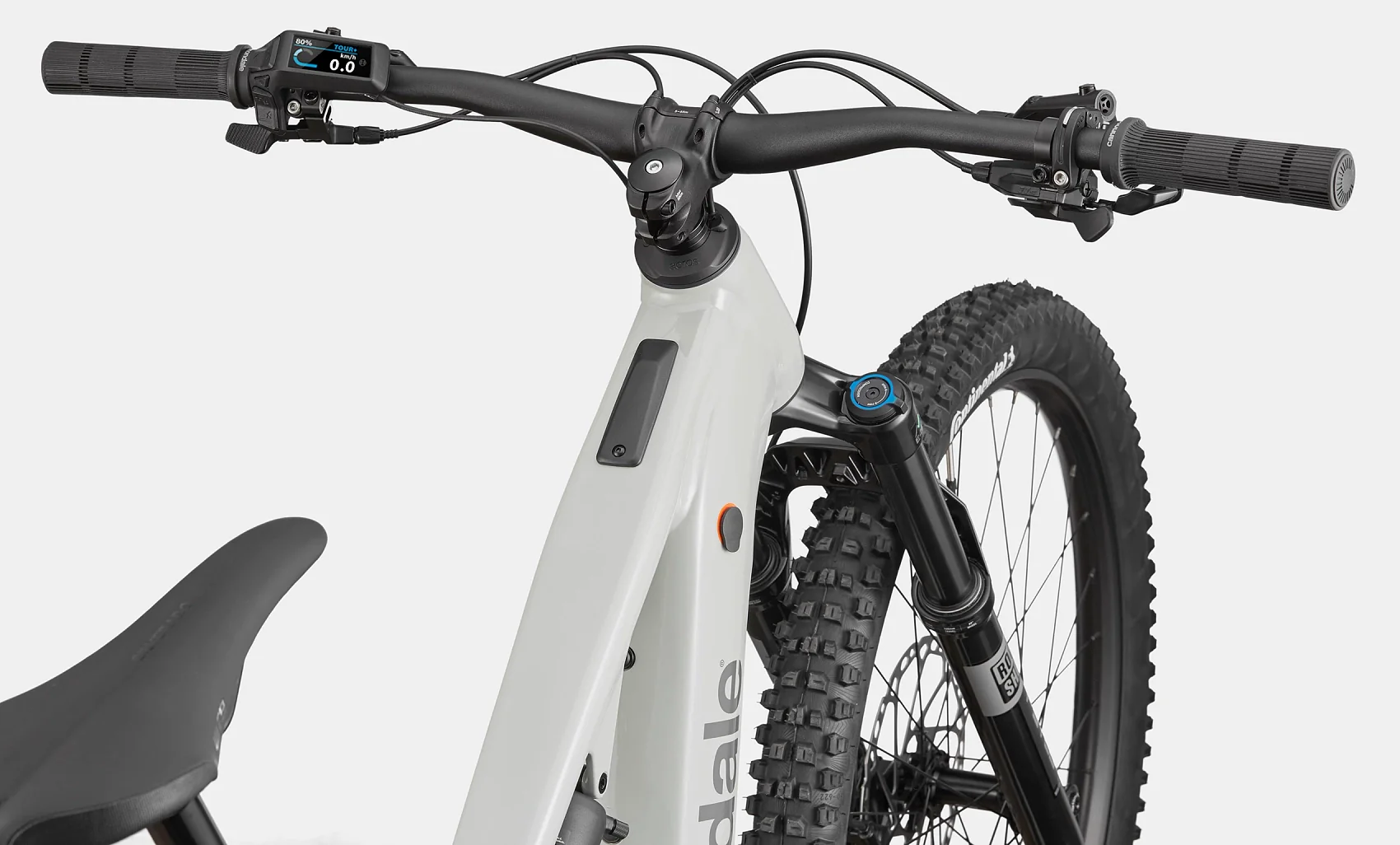

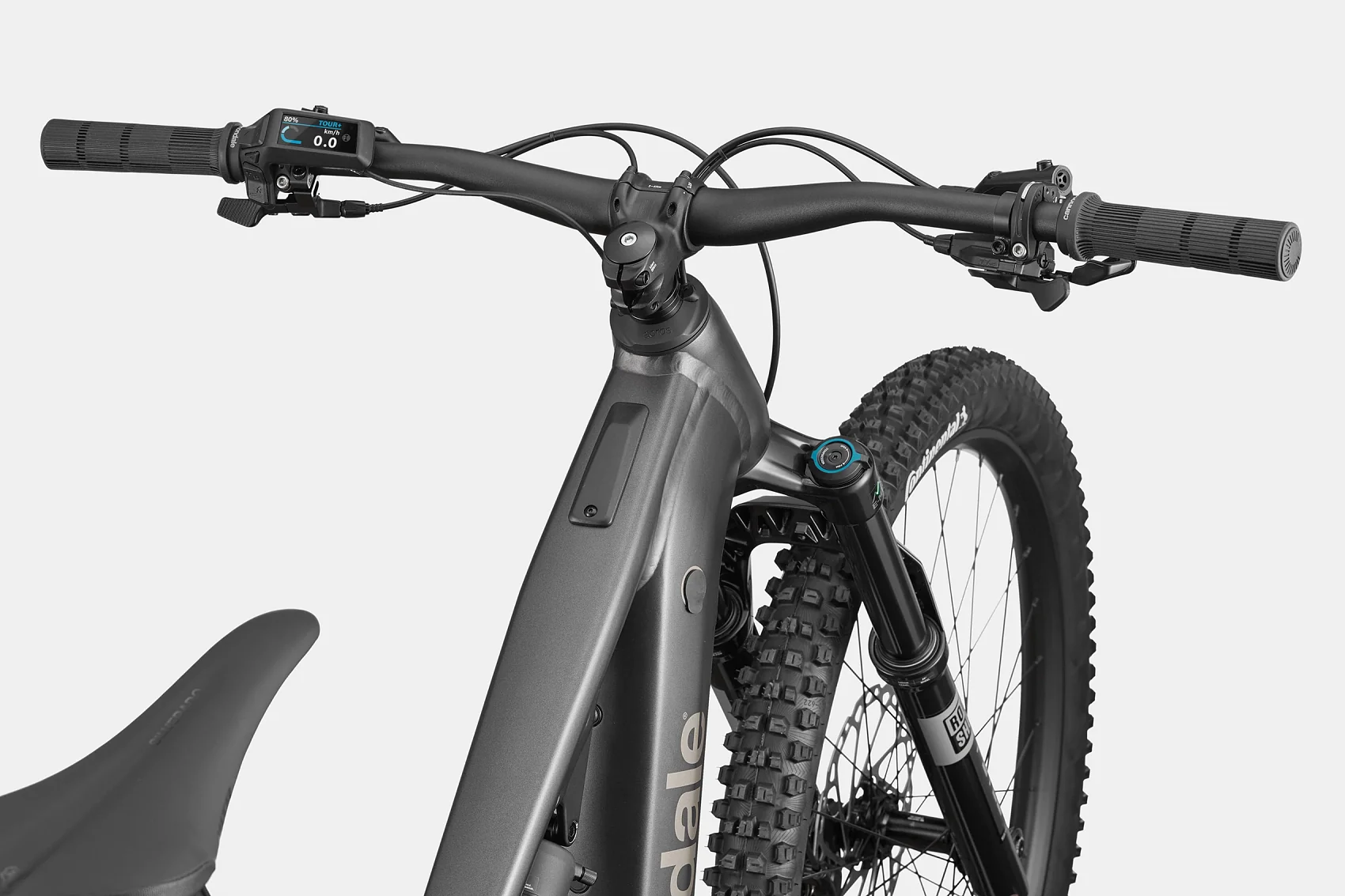

| Charger / Display | Bosch 4A Charger / Bosch Purion 200 Display |
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible |
| Front Hub | Shimano TC500, 15x110mm thru-axle |
| Rear Hub | Shimano TC500, 12x148mm thru-axle, centerlock |
| Spokes | DT Swiss Champion 2.0 |
| Tires | (F) Continental Kryptotal-F, 29x2.4", Enduro Soft / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |

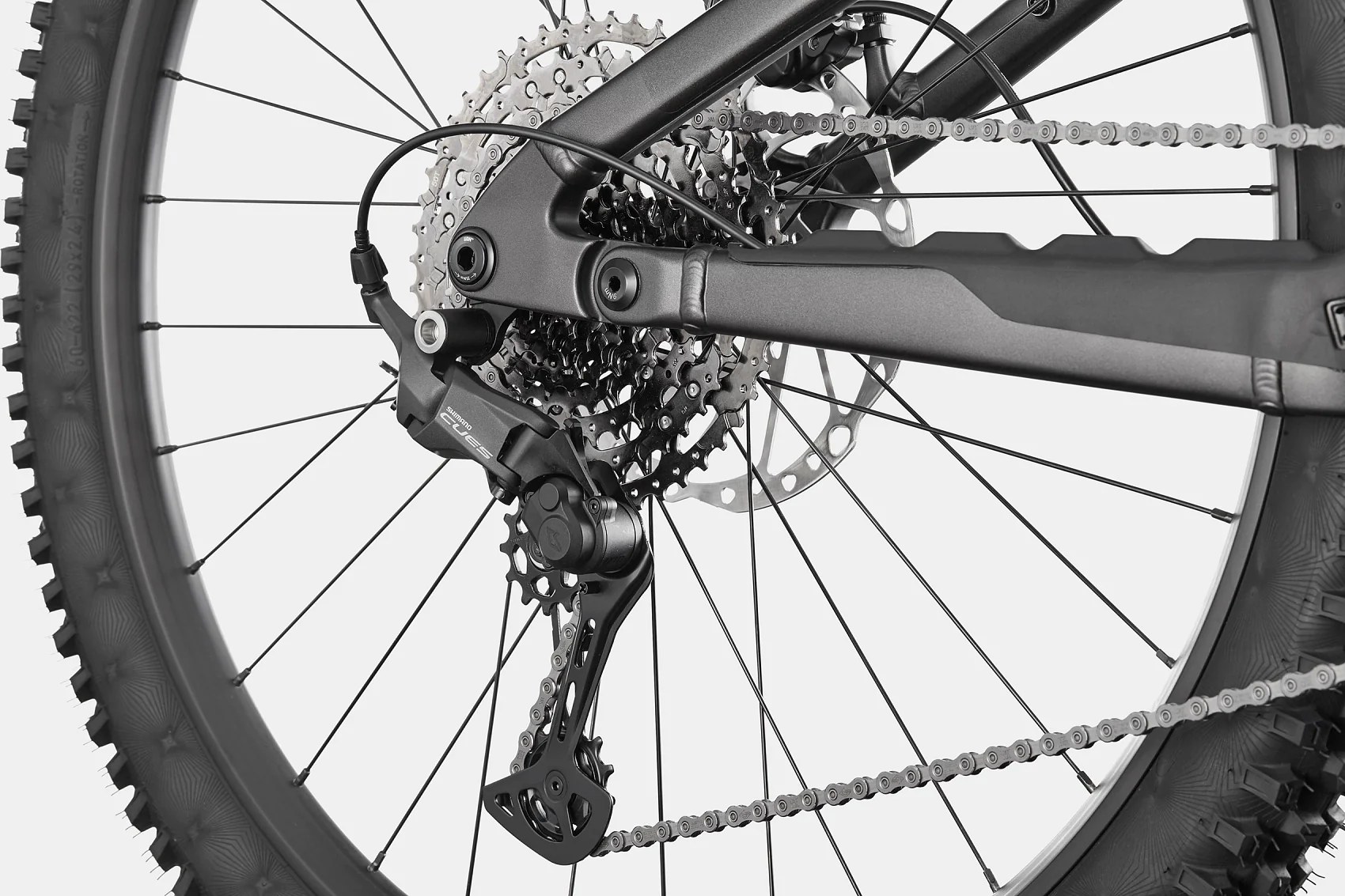

| Rear Derailleur | Shimano CUES U6000, LinkGlide, 11-speed |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50t, 11-speed |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Brakes | Shimano MT520 4-piston hydraulic disc |
| Rotors | Shimano RT64 203mm (Front & Rear) |
| Handlebars | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 800mm |
| Bar Tape/Grips | Cannondale TaperRidge |
| Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Seatpost | Cannondale DownLow Dropper, 34.9mm (150mm S, 170mm M, 200mm L, 230mm XL) |
| Saddle | WTB Silverado Medium |
| Extras | Bosch PowerMore range extender compatible |
All specifications subject to change without notice
Sizing Guide
| Rider Height | Suggested Frame Size | Wheel Size |
| 5'1" - 5'5" | Small (SM) | 29" |
| 5'4" - 5'9" | Medium (MD) | 29" |
| 5'8" - 6'1" | Large (LG) | 29" |
| 6'0" - 6'5" | X-Large (XL) | 29" |
📏 Sizing
Available in multiple frame sizes to fit a wide range of riders.
Contact us if you need help choosing the correct size.
🛒 Ready to Ride?
Order your Cannondale Moterra 3 today and experience a lightweight carbon trail bike designed for fast climbs, efficient pedaling, and confident singletrack performance.
