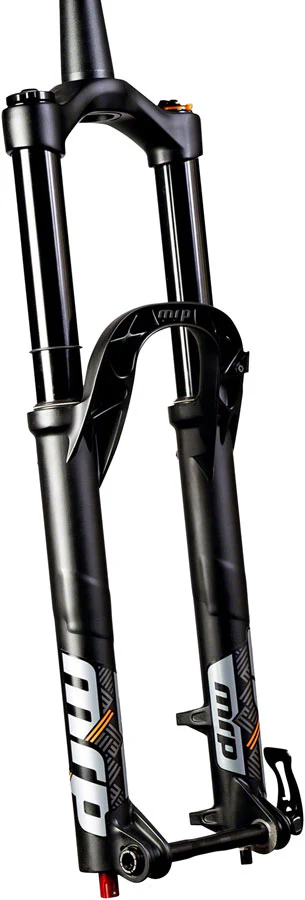

The Ribbon Air is an enduro-capable trail fork with unprecedented adjustment features. Beefy stanchions extra-plush small bump compliance and a distinctive arch combine to make a fork that excels under a variety of trail conditions.
Robust Outcast arch provides lateral stiffness and doesn't fill with mudPSST pressure relief valve aids in equalization at high altitude and under aggressive ridingRamp control allows quick tuning from progressive to linear spring feel on the trail8 position compression dampingPositive/negative air adjust allows for extra fine tuningBladder-free IFP damper design
| Steerer Type |
Tapered |
| Brake Type |
Post Mount 180 |
| Negative Spring |
Air |
| Travel (mm) |
170 |
| Offset |
39 |
| Axle to Crown Length |
562 |
| Front Axle |
15mm Thru x 110mm |
| Maximum Tire Width |
2.6" |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Color |
Black |
| Crown Race |
40 |
| Weight |
1950 |
| Wheel Size |
27.5" |
| External Adjustments |
Low Speed Compression Damping |
| Defined Color |
Black |
| Positive Spring |
Air |
| keyword search |
Wonderland Canada |
| Stanchion Diameter |
35 |
| Size |
27.5" |
| Travel |
170Mm |
